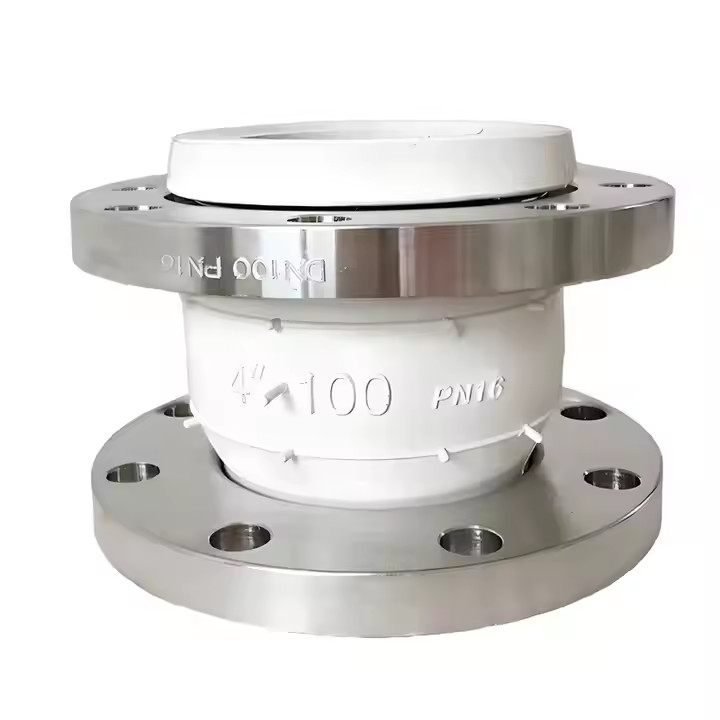

Flanged oil-resistant silicone food-grade rubber expansion joint
Product Introduction
Rubber soft fittings for food-grade pipes are an important connection element specially designed for use in piping systems in the food industry. This joint not only has the excellent elasticity, corrosion resistance and sealing properties of rubber materials, but also meets food-grade safety standards, ensuring that food is not contaminated during food production, processing and transportation.
Product type
Common types of rubber soft fittings for food-grade pipes include:
1. Flexible rubber joint: It has a large displacement compensation capacity, and is suitable for occasions with large displacement or vibration in the pipeline system.
2. Stainless steel flange rubber joint: Connected with the pipeline system through stainless steel flange, with excellent sealing performance and stable and reliable structure.
3. Silicone soft joints: Made of silicone materials, high temperature resistance, corrosion resistance, non-toxic and tasteless, especially suitable for the food industry with high requirements for medium.
Features of food-grade rubber joints
1. Material safety
2. Good sealing
3. Good elasticity
4. Corrosion resistance
5. Easy to install
Product parameters
| |
| Working Temperature | -20℃~150℃ |
| Working Pressure | 10bars,16bars (PN10,PN16) |
| Test Pressure | 1.5 Times of Working Pressure |
| Burst Pressure | 2.0 Times of Working Pressure |
| Applicable Medium | Food, Drinks, Beer, water, others. |
| Nominal diameter |
Length (mm)
| Axial displacement(mm) | Horizontal displacement(mm) | Deflection angle |
| mm | inch | Elongation | Compression |
| 32 | 1 1/4 | 95 | 6 | 9 | 9 | 15° |
| 40 | 1 1/2 | 95 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 7 | 10 | 10 | 15° |
| 65 | 2 1/2 | 115 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 16 | 25 | 22 | 15° |
| 250 | 10 | 230 | 16 | 25 | 22 | 15° |
| 300 | 12 | 245 | 16 | 25 | 22 | 15° |
| 350 | 14 | 255 | 16 | 25 | 22 | 15° |
| 400 | 16 | 255 | 16 | 25 | 22 | 15° |
| 450 | 18 | 255 | 16 | 25 | 22 | 15° |
| 500 | 20 | 255 | 16 | 25 | 22 | 15° |
| 600 | 24 | 260 | 16 | 25 | 22 | 15° |
| 700 | 28 | 260 | 16 | 25 | 22 | 15° |
| 800 | 32 | 260 | 16 | 25 | 22 | 15° |
| 900 | 36 | 260 | 16 | 25 | 22 | 15° |
| 1000 | 40 | 260 | 18 | 26 | 24 | 15° |
| 1200 | 48 | 260 | 18 | 26 | 24 | 15° |
Different types of rubber joints

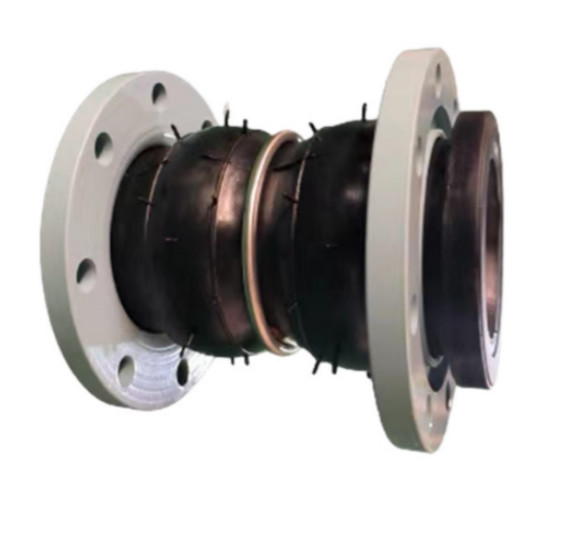

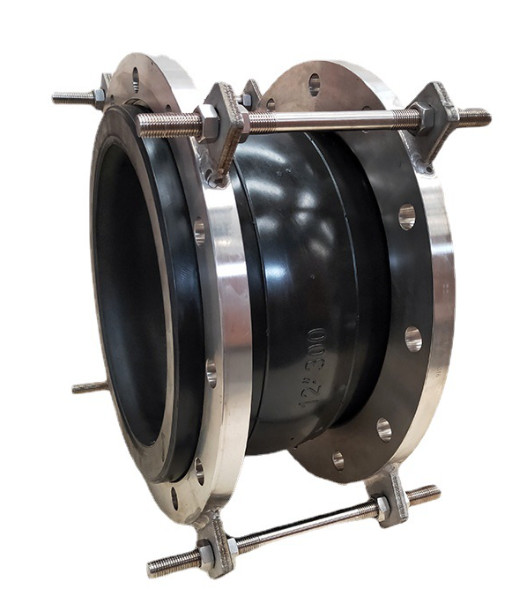

Single ball Tie rod limit Double ball with Double ball rubber joint
rubber joint rubber joint pressurized ring with tie rod

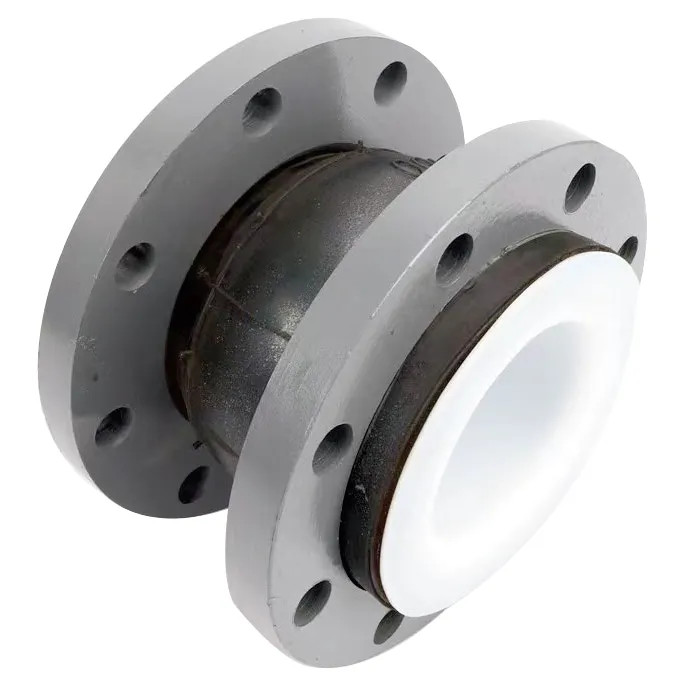

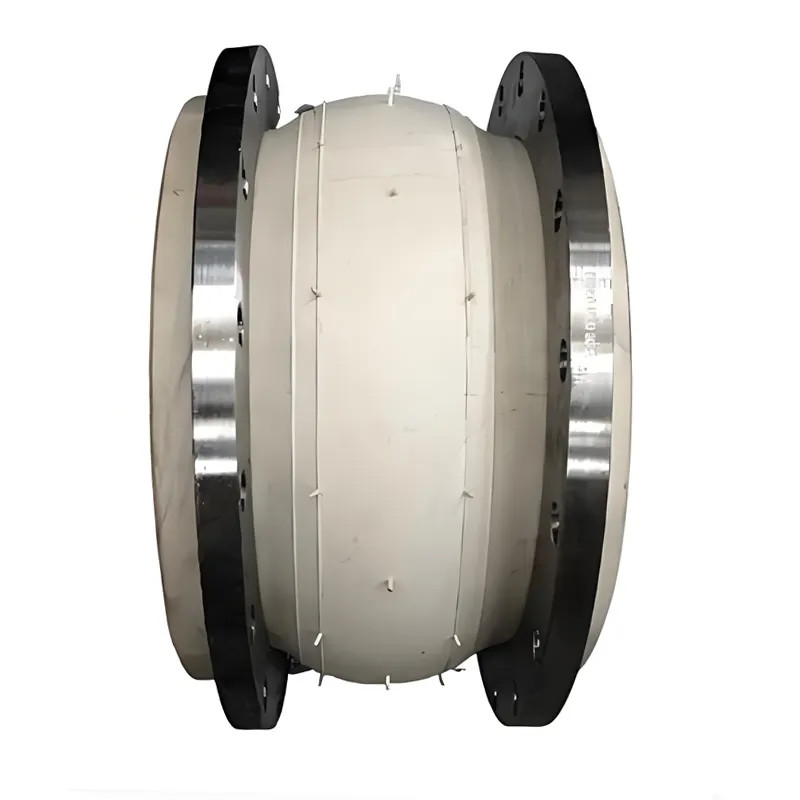

Food grade PTFE lined End face fully Union threaded
rubber joint rubber joint sealed rubber joint rubber joint
Packaging
1.Commonly package the products by plastic bag and put it into carton and wooden cases.
2.Others packaging methods are customized.
Shipping
1.We could deliver the goods by international express, such as DHL, UPS, TNT, EMS, others.
2.You could also choose the transportation according to your schedule and budget.
3.Or you could use your own cargo agent.

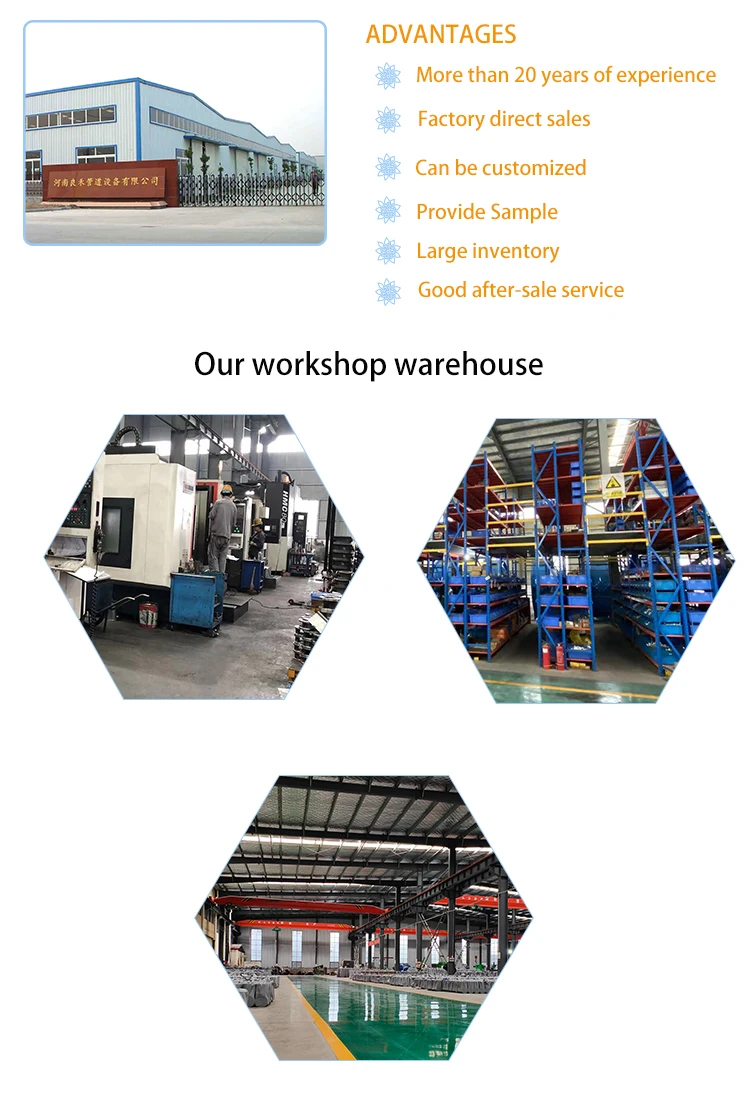

Our factory
Why choose?
1. We have a professional technical team to serve you
2. The quality of our products is strictly guarded
3. Our price is competitive
4. We support OEM service
5. We have many years of export experience
6. Our production period is short and the delivery speed is fast

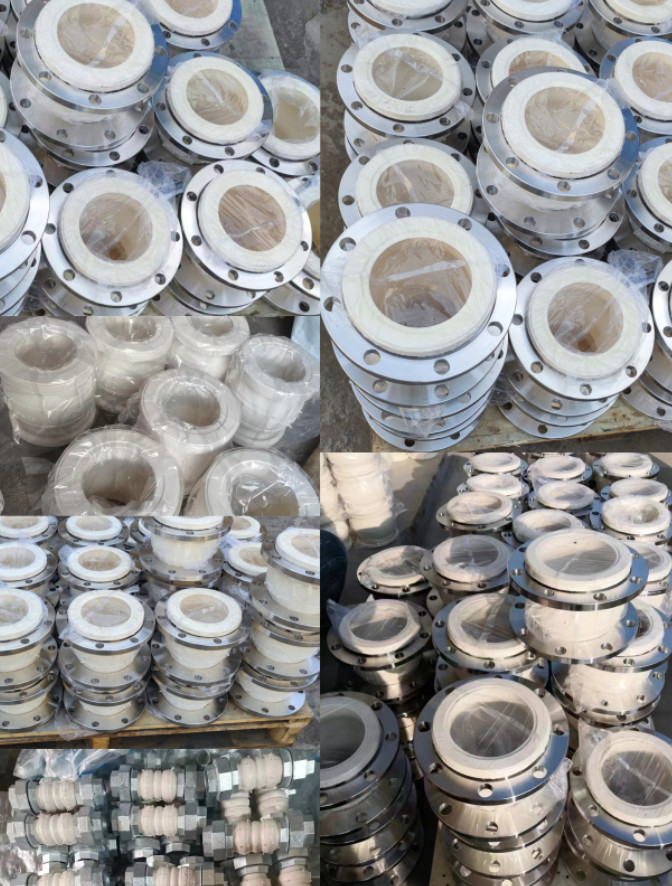

Product inventory
FAQ
Q: Can the logo on the rubber ball be customized?
A: Yes, it can be marked with your company's logo. We can provide OEM and ODM services.
Q: Can the length of the rubber ball be customized?
A: Of course, we have many different specifications and models of molds, which can be customized according to your length.
Q: Can the inner layer rubber and outside layer rubber be made using different rubber?
A: Yes, we can produce the rubber joint according to the environment the rubber joint is used in, and we will choose different rubber for the inner layer and outside layer.
Q: Does the rubber joint have inspection report?
A: Yes, all of our product will be conducted hydro test and leave the factory with a qualified inspection report.
Q: Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Vietnam, Indonisia, Singapore, Greece, Netherland, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines...
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
